Interactive RTJ Gasket Selection Guide & Operating Sizing

Configure your flange operating parameters below to calculate the exact RTJ ring number, ASME/API precision dimensions, stud bolting geometry, and recommended preload torque.

FLANGE OPERATING PARAMETERS
Design Compliance: ASME B16.20 & API Spec 6A controlled hardness and tolerances.
CALCULATED RESULT
VERIFIED SPEC
SPECIFIED RING NUMBER

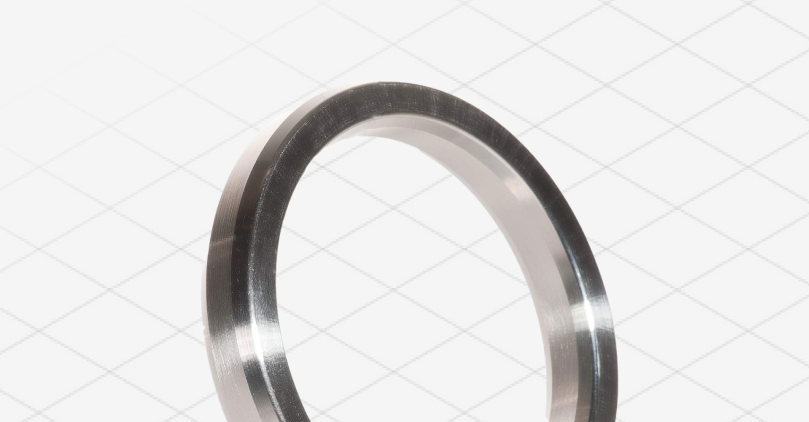

R-35
GROOVE STANDARD
ASME B16.5
Pitch Diameter (P):136.53 mm (5.375")
Ring Width (A):11.13 mm (0.438")
Ring Height (H):16.0 mm (0.630")
Width of Flat (C):7.75 mm (0.305")
Radius (R1):1.5 mm (0.060")
Stud Bolt Geometry:8x 1-1/8"-8 (7.00")
Preload Torque:1180 Nm / 870 ft-lbs
Alloy Metallurgy:Type 316 Stainless Steel (S31600)
Max Hardness Limit:160 HB / 83 HRB Max
+ ADD TO RAPID RFQ
